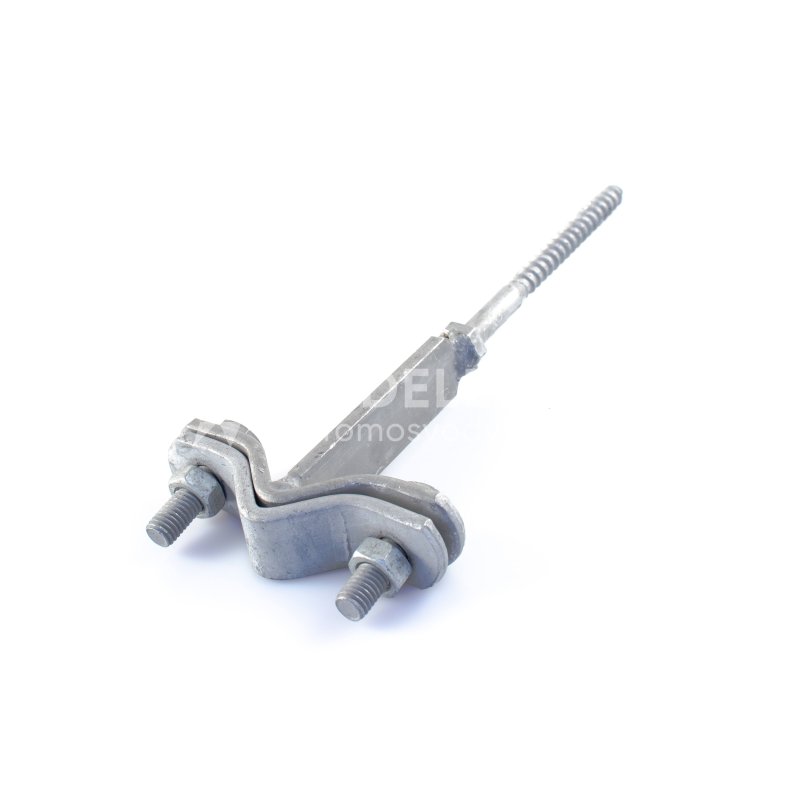

DUDA – protective angle holder
Use: Holder for fixing a protective angle into masonry using a wall plug.
Material: For variants DUDa-18 Cu, DUDa-22 Cu, DUDa-23 Cu and DUDa-27 Cu the screw is stainless steel. For variant DUDa-11 the screw size is Ø 6/50 mm.
Material: For variants DUDa-18 Cu, DUDa-22 Cu, DUDa-23 Cu and DUDa-27 Cu the screw is stainless steel. For variant DUDa-11 the screw size is Ø 6/50 mm.
You can add this product to an enquiry. We will contact you with pricing and availability.
| Material | Designation | L (mm) | Weight (kg) |
|---|---|---|---|
| FeZn | DUDa-11 | 100 | 0.187 |
| DUDa-18 | 180 | 0.189 | |
| DUDa-22 | 220 | 0.204 | |
| DUDa-27 | 270 | 0.239 | |
| DUDa-32 | 320 | 0.247 | |
| DUDa-37 | 370 | 0.259 | |
| Copper | DUDa-18 Cu | 180 | 0.225 |
| DUDa-22 Cu | 220 | 0.230 | |
| DUDa-23 Cu | 230 | 0.237 | |
| DUDa-27 Cu | 270 | 0.248 | |
| Stainless steel | DUDa-18 N | 180 | 0.152 |
| DUDa-22 N | 200 | 0.169 | |
| DUDa-23 N | 230 | 0.189 | |
| DUDa-27 N | 270 | 0.236 |
